30/09/2026 – Wire processing / Joining
Fence panel production
For the 2D/3D fence panel production Eurobend offers machines covering all productivity and automation demands: Low and middle volume production of 2D/3D panels from pre-cut bars (produced by a Multiline Rotor-straightening machine of the “MELC Polyline” series) with a mesh welding line of the “PLC ET” series with either stand-alone or an integrated bending unit for forming the 3D panels.

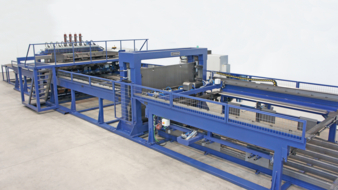

Bild 1: MELC Polyline rotor straightening machine for the production of the pre-cut bars. © Eurobend

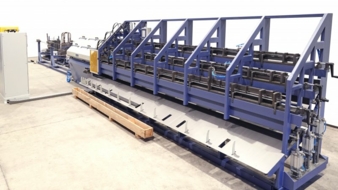

Bild 2: PLC ET B mesh welding line with integrated bending unit producing 2D and 3D panels from pre-cut bars © Eurobend
Fully automatic high volume non-stop production of 2D/3D and double bar fence panels from coils with one machine of the “AKK F” series. The high flexibility of the “AKK B” machines allow not only the production of large batches but also JIT production of smaller orders.
This new, innovative concept of the “AKK” eliminates all idle times and increases significantly the productivity in comparison to conventional welding lines. All advantages from off-coil and pre-cut welding machines and more, are combined in one machine. The mesh welding lines of the “AKK” Series are capable of producing large and small batches-orders consecutively without any downtime. The concept behind the “AKK” series allows automatic mesh spacing and dimensions changes, making it the only flexible high production coil-fed mesh welding line, as it can produce all fence panel types instantly without any adjustments. The double line and cross wire de-coiling station replaces the non flexible arrays of coils of the conventional mesh welding machines. It offers a compact system layout requiring minimum floor space requirements.
No downtime when changing: wire coils; line and cross wire spacing and mesh dimensions.
Equipped with the patented “Automatic Wire Orientation System”, which allows the use of a high speed roller straightening module for line wire feeding. The “AWOS” absorbs all wire straightening imperfections from the roller straightener. This unique Automatic Wire Orientation System ensures perfectly flat mesh panels regardless of wire and straightening quality.
The cross wires can be welded above and below the line wires for compact stacking and the production of double wire panels.
The “AKK F” models with mesh advancing through a servo-driven carrier offer exceptional accuracy for production of precision industrial mesh, gabions and fence panels without overhangs, eliminating the need of trimming. An integrated mesh bending unit allows the in-line production of the 3D panels. Automated labeling systems are available.
Eurobend GmbH
Alexanderstrasse 1
90547 Stein/Germany
Tel.: +49 911 9498980
info@eurobend.com
