18/03/2025 – Advanced and compact 3D wire bending machine

Launch of the new “AFCe-3Dx” Line

AIM, Inc. is proud to unveil the new AFCe-3Dx line, an advanced and compact 3D wire-bending machine designed to set new standards in wire-forming technology at an exceptional price point.

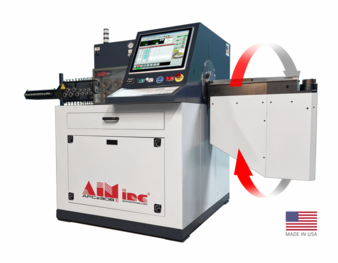

Experience the future of wire forming with AIM’s “AFCe-3Dx”. © AIM



Building on over 20 years of success with the AccuForm Compact series, the AFCe-3Dx delivers greater flexibility, superior wire-forming capabilities, and more than double the production rates compared to low-cost competitors.

Key features of the “AFCe-3Dx”

– DXF, LRA, and XYZ file import: Streamlines the programming process.

– Animated bending simulation with collision detection: Ensures accuracy before production.

– Auto speed/load monitoring: Optimizes performance during operation.

– User-friendly touchscreen monitors: Industrial-grade 19” LCD color display for seamless interaction.

– Microsoft “Windows” operating system: Provides a familiar and reliable interface.

– 5 HP wire payoff unit: Ensures smooth and efficient wire feeding.

– Dial-A-service remote support: Enables AIM’s technical team to diagnose and assist remotely.

– Maintenance module: Automatically schedules and reminds users of essential maintenance tasks for minimal downtime.

Available options

– “Accu Cal” automatic bend setup: Simplifies setup for complex bends.

– “Accu Track” production statistics: Offers detailed insights into production efficiency.

– AIM academy 24/7 online training: Provides continuous learning and operational support.

– CMM communication: Facilitates automatic programmer corrections.

– Robotics integration: Enhances automation and productivity.

– Step and Iges file import: Expands compatibility with CAD systems.

“AFCe-3Dx” specifications

Maximum wire diameter: 8mm (10mm version also available).

Precision construction: AIM’s robust and reliable machine design.

High-end digital servo system: Powered by Yaskawa for unparalleled performance.

Safety features: Includes Z-axis arm safety gates with sensors.

P2705 5 HP payoff unit: Ensures uninterrupted wire feeding.

Two-plane wire straightener: Guarantees optimal wire straightness.

Tooling package: Includes feeder rollers, cutters, bending pins, and a tool cluster tailored to your specific wire.

Industrial storage Drawer: Keeps tools organized and easily accessible.

Feeder resolution: 0.0002” for exceptional precision.

Feeder speed: Up to 230feet/minute (70meters/minute).

Yaskawa belt-driven servo bender: Low-maintenance and cost-efficient.

Unlimited Z-axis rotation: Operates at extreme speeds with full 360° capability.

Proprietary “Smart Editor” software: Simplifies programming and enhances user control.

Graphic simulation with animation: Visualize operations before production begins.

Why choose the “AFCe-3Dx”?

The “AFCe-3Dx” is designed for reliability, efficiency, and ease of use, incorporating readily available replacement parts to minimize downtime. Whether you're upgrading from an older model or investing in your first wire-bending machine, the “AFCe-3Dx” offers unmatched value and performance.

More infomation: https://www.aimmachines.com/afce-3dx/
