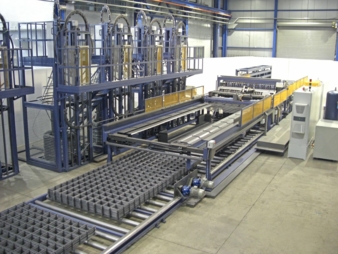

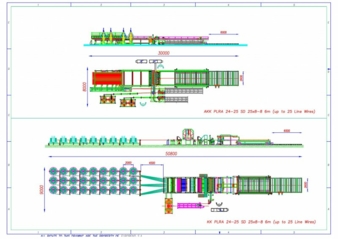

This concept eliminates all idle times and increases significantly the productivity in comparison to conventional welding lines. All advantages from off-coil and pre-cut welding machines and more, are combined in one machine. The mesh welding lines of the “AKK” Series are capable of producing large and small batches-orders consecutively without any downtime. The concept behind the AKK series allows automatic mesh spacing and dimensions changes, making it the only flexible high production coil-fed mesh welding line, as it can produce all mesh types instantly without any adjustments. The double line and cross wire de-coiling station replaces the non flexible arrays of coils of the conventional mesh welding machines. It offers a compact system layout requiring minimum floor space requirements.

No downtime when changing:

– Wire coils

– Line and cross wire spacing

– Mesh dimensions

The unique wire feeding system that ensures diameter changes in a fraction of time in comparison to the conventional mesh welding lines, allowing multiple diameter changes in one shift (or day) without wasting time and production.

Equipped with the patented “Automatic Wire Orientation System”, which allows the use of a high speed roller straightening module for line wire feeding. The “AWOS” absorbs all wire straightening imperfections from the roller straightener. This unique Automatic Wire Orientation System ensures perfectly flat mesh panels regardless of straightening quality. It is fully programmable and capable of processing smooth or ribbed material.

The cross wires can be welded above and below the line wires for compact stacking. A mesh turning unit is no more needed.

Two “AKK” machine types are available: the models “AKK F” with mesh advancing through a servo-driven carrier offering exceptional accuracy for production of precision industrial mesh, gabions, fence panels and others without overhangs, eliminating the need of trimming and the “AKK R” models, using roller feeding system for reinforcement mesh. Roller or laterally discharging chain conveyors with height adjustment, automatic palletizing and labeling systems are available. Remote access via Internet connection for troubleshooting and routine maintenance.

The “AKK” series are available in machine versions, processing diameters up to 6mm, 8mm, 10mm and 12mm coiled or spooled material.
