09/04/2026 – All-in-one bolt manufacturing machine
Hot forming for larger diameters
All-in-one machines combine wire feeding from the coil, straightening and cutting, upsetting the head and rolling the thread in a single system and in one continuous process. Amba has now introduced a machine with wire diameters of up to 18mm/0.71inches that integrates inductive heating.

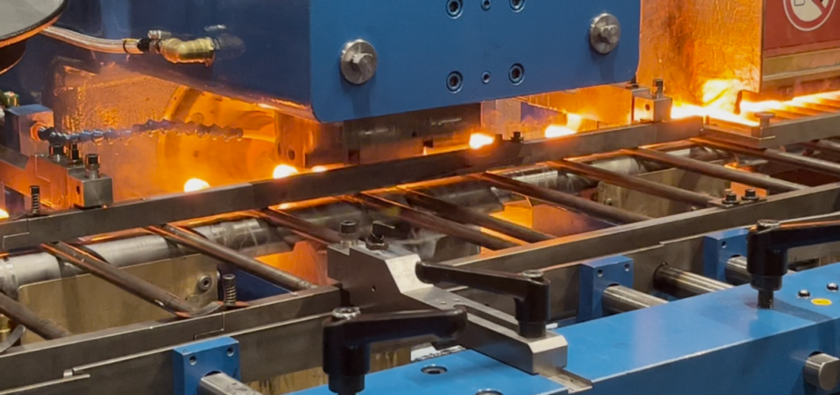

The blanks exiting the induction station are preformed at station one and transported side by side within the transfer system. Every second, the blanks advance by one position. © Aachener Maschinenbau
Press stations 1 and 2 (preforming/final forming) process blanks at temperatures exceeding 1,900°F. © Aachener Maschinenbau
The blanks exiting the induction station are preformed at station one and transported side by side within the transfer system. Every second, the blanks advance by one position. © Aachener Maschinenbau
The last press operation involves calibrating the part © Aachener Maschinenbau
The finished product. Such volume redistribution in only two press stages is only feasible by hot forming. © Aachener Maschinenbau
Top view of the complete machine with induction unit. A combination of multiple processes in a very compact space. © Aachener Maschinenbau
