The mobile unit is designed for unloading bulk goods such as construction materials, food, chemicals, and plastics – without the need for stationary power connections or compressed air units. The unit draws power from the electric truck’s battery, so no engine needs to be running during unloading.

Greater kingpin load, greater swing-through clearance

The compact design makes the “SKL eMotion”-Pack ideal for electric vehicles – not least because it maximizes the kingpin load and space utilization. It also takes up less space behind the cab. This allows the fifth-wheel coupling to be positioned flexibly to distribute the drawbar load optimally across the axles. “At the same time, there is sufficient swing-through space for the trailer, so that semi-trailers with standard EURO dimensions can also be used, depending on the type of truck,” adds Andrea Dente, the responsible Product and Sales Manager.

Low noise level additional benefits include quiet operation: Compared to diesel engines, the noise level during unloading is significantly lower. Another plus for users: The direct drive system requires neither hydraulic oil nor mechanical shafts, which simplifies maintenance and reduces operating costs. The cooling system for the SKL eMotion Pack from CVS consists of an efficient oil cooler for the operating oil and a compressed air aftercooler, particularly for temperature-sensitive goods. In addition, an intake filter with an integrated maintenance indicator ensures good air quality. Any potential overloads are prevented by a special safety valve and a pressure silencer with an integrated check valve.

Read real-time data “The other system features are also impressively user-friendly,” adds Andrea Dente: “For example, power is transmitted via a flexible coupling between the ePTO motor and the screw compressor.” The ePTO (electric Power Take-Off) is a complete unit featuring a liquid-cooled, speed-regulated electric motor and control system. All values, such as temperature or torque, can be read at any time as needed.

Easy installation on vehicles Installing the SKL eMotion Pack on vehicles is straightforward and is done directly on the chassis using specially adapted mounts. In addition, two compressed air outlets ensure easy and flexible unloading. All in all, the SKL eMotion Pack is well-suited for the growing market of mobile unloading of electric silo trucks whose mechanically driven compressor units are not compatible with electric trucks. Following the market launch of the SKL eMotion Pack, CVS engineering plans further model and functional enhancements to be able to offer the system for all truck brands.

Key Benefits at a Glance - Suitable for all temperature-sensitive bulk and free-flowing materials such as food, plastics, animal feed, chemicals, or construction materials - Optimized for mounting on a truck chassis - Operating pressure up to 2.5 bar(g) - Maintenance-friendly design - The complete system solution with e-PTO for your electric truck.

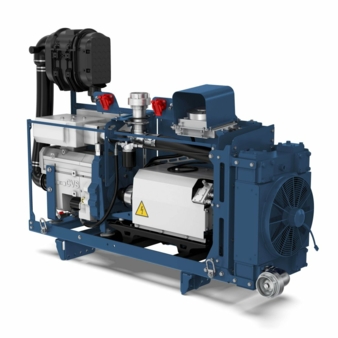

With the new SKL eMotion-Pack, CVS has collaborated with fleet operators to create a powerful, zero-emission compressor unit for electric trucks.

Additional benefits include quiet operation. The compact design makes the SKL eMotion-Pack ideal for electric vehicles.

CVS Engineering GmbH

Großmattstraße 14

78618 Rheinfelden

Tel.: +49 7623 71741-0

info@cvs-eng.de

www.cvs-eng.com

About CVS Engineering

CVS Engineering GmbH develops and manufactures high-quality compressors and vacuum pumps for mobile applications such as suction, silo, and tanker vehicles, as well as for public transport (buses and trains). The company also offers plug-and-play compressor units for stationary unloading of silo vehicles. At its German site, CVS uses state-of-the-art manufacturing technologies, automated machining centers, and precise measurement technology to enable flexible, fast, and high-quality production. The products are sold worldwide directly and through qualified distributors. CVS is certified according to DIN ISO 9001 and DIN EN 15085 2 and is recognized by various OEMs in the railway sector. With in-depth expertise and a high degree of manufacturing flexibility, CVS delivers powerful, tailor-made compressor and vacuum solutions. The company focuses on innovation, the highest quality standards, and partnership-based cooperation to deliver reliable, efficient systems.
