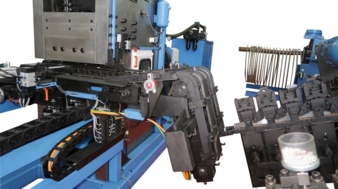

Starting from coil, the weld-stud line performs the following operations:

1. The machine pulls the wire from coil, straightens it and cuts to length.

2. The straight bars are chamfered, stamped and drilled in 3 separate stations.

3. An aluminum flux ball is inserted and the result is inspected.

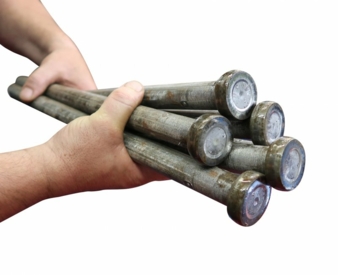

4. The weld-studs are transferred to the cold header

5. The cold Header grips the weld studs on the back side and heads them (2-blow).

The entire line works fully automatically from coil (hot-rolled, ribbed or cold-drawn), requiring only loading of new coils.

The diameter range is up to Ø25mm and the length range is 250mm to 2,000mm.

wire 2024, hall 16 booth J 61

Videx Machine Engineering Ltd., Yahud (Israel)

www.videx-machine.com
