01/07/2025 – Fiber optic cable solutions

Take-up “TM 1250”

The new compact take-up from Maillefer is designed especially for small fiber optic jacketing lines and equipped with servo motor-driven traversing pulleys.

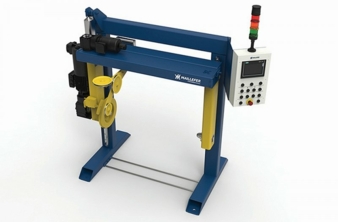

Take-up “TM 1250”. © Maillefer



The machine is optimized for lightweight and flexible products like drop cables and premise cables. The “TM 1250” is equipped with servo motor-driven traversing pulleys. This traversing assembly gives the take-up’s flexibility in different layout positions.

The unit can be placed parallel or perpendicular to the extrusion line. A large range of reel dimensions makes the “TM 1250” a versatile take-up for fiber optic cables or even for small copper wires.

Details

– reel diameter ranges from 400mm to 1,250mm

– reel width ranges from 265mm to 950mm

– maximum reel weight of 1,000kg

– cable diameter ranges from 2mm to 8mm

– flexible layout options on the shop floor.



Maillefer Extrusion Oy
Ensimmäinen savu, P.O. Box 176
01511 Vantaa, Finland
Contact person is Pirita Olli
Tel.: +358 9 88665600
pirita.olli@maillefer.net
www.maillefer.net
