15/03/2022 – More meaningful process values than from production extruder

Laboratory extruder for cable engineering

Kurre Systems has further developed the laboratory extruder for customer-internal product engineering. The current model is used to simulate different screw designs.

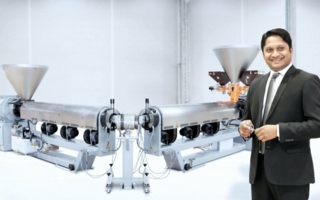

Kurre Systems laboratory extruder for customer's in-house product engineering. © Kurre


The screw can be individually adjusted for unknown materials in just a few steps. © Kurre

Show all images

In the extrusion process, the nine sensors provide detailed process data. The quick-change system enables the motor to be pushed to the side, thus allowing flexible replacement of the feed bush. This makes it easy to test different groove geometries. Pressure and temperature measurements of individual or all barrel zones take place simultaneously. The laboratory extruder is also equipped with an analysis tool for optimum evaluation of process parameters and energy consumption.

 Especially when testing e.g. new polymers, more meaningful process values than a production extruder. The laboratory extruder provides Screw designs and material properties can thus be verified. For unknown materials, the screw can be individually adapted in just a few steps. Likewise, compression flights, barrier flights or mixing and shear segments can be easily replaced. The laboratory extruder plasticizes all common as well as new polymers, e.g. special materials such as PFA or PEEK with high-temperature applications up to 400°C. Kurre Systems also offers all laboratory tests (including physical foaming) as an engineering service in its own technical centre.

Kurre Spezialmaschinenbau GmbH
wire 2022, hall 10 booth B 22
Tel.: +49 4498 9250-450
