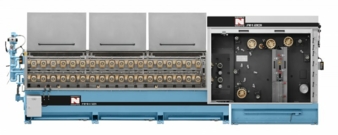

The drawing machine is designed to draw 32 wires on two levels simultaneously. Some features of the line are its compact design, a high productivity, and a low wire break rate.

The “RM 201” type resistance annealer works with the field-proven 2/3 zone annealing which can be selected with or without wire reheating. The results are an optimum wire drying and an economical use of energy for bigger wire sizes.

The line is foreseen for copper wires and operated by means of the standardized NMI (NIEHOFF Machine Interface), a network-compatible touchscreen which enables an easy intuitive operation.

The intelligent technology of the machine allows to measure, save and use machine data, production data and process data according to Industry 4.0.

Wires drawn on this line show highly homogeneous characteristics and narrowly tolerated properties along their entire length. Such wires can be processed to multiwire bundles with outstanding characteristics and are ideally suited for final applications or downstream processing into high-quality strands or braids.

Technical data MMH 121
max. production speed: #35 m/s
wire inlet diameter: #2.00 or 1.80 mm*
wire finished diameter: #0.16 ... 0.50 mm
max. number of wires: #32
number of wire drafts: #22
*Cu hard

wire India 2024, hall 1 booth I 07
