30/03/2026 – Extrusion
Custom extrusion heads designed around customer needs
In an increasingly demanding wire and cable market, manufacturers are looking for more than just standard equipment. They need extrusion solutions that adapt precisely to their products, materials and production constraints. This is where Erocarb SA positions itself as a long-term engineering partner.

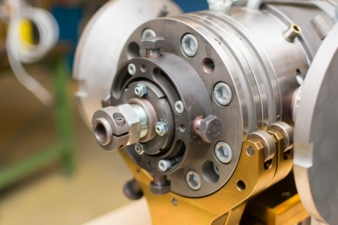

Rear centering system. © Erocarb

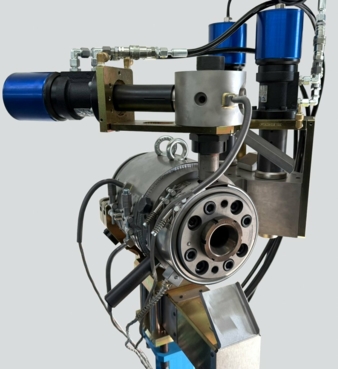

Erocarb “E25GN21” – Multi-layers crosshead. © Erocarb
Specialized in the design and manufacture of crossheads, Erocarb SA develops solutions ranging from very small to very large cable dimensions, with a strong focus on customization, precision and operational efficiency.
Every extrusion project comes with its own challenges: polymer sensitivity, tight concentricity tolerances, limited installation space, frequent product changes or demanding production speeds. Rather than adapting the process to a standard tool, Erocarb SA designs extrusion heads adapted to the process itself.
Custom geometries, optimized flow channels and the integration of customer-specific components allow each extrusion head to be engineered according to the needs.
This approach ensures stable flow conditions, controlled residence time and consistent product quality across a wide range of applications.
Centering concepts adapted to every level of precision
Concentricity control is a critical parameter in cable/pipe extrusion. To address different production strategies and accuracy requirements, Erocarb SA offers several centering system configurations:
Front centering, a cost-effective and versatile solution, well suited for standard applications. It combines simplicity with reliable adjustment and is widely used for its robustness and ease of integration.
Rear centering, designed to improve accessibility and reduce adjustment effort, rear centering allows more comfortable and precise settings, especially when frequent corrections are required. Its more elaborate design provides enhanced ergonomics for operators.
Fine-tuning centering, developed for small cable dimensions and very thin insulation layers, this micro-centering system enables extremely fine and repeatable adjustments. It is particularly suited for applications where precision and stability are critical.
Fixed centering, based on high-precision mechanical alignment, fixed centering requires no adjustment. It offers excellent concentricity through machining accuracy alone and is ideal for stable, repeatable production processes.
Accessories designed to support daily operations
Beyond crossheads themselves, Erocarb SA develops a wide range of accessories aimed at simplifying production, maintenance and cleaning operations.
Like the Telescopic distributor dismantling systems, allowing distributors to be safely removed and cleaned directly on the extrusion line.
Or all types of Bypass valve systems, available in manual, pneumatic or hydraulic versions, reducing downtime during maintenance or material changes.
And finally, let's not forget a wide range of wire guides and dies, covering all common extrusion processes, from compression to tube extrusion.
A partner focused on long-term performance
By combining engineering expertise, modular design and close collaboration with customers, Erocarb SA delivers extrusion solutions that support both productivity and reliability. From tailored extrusion heads to smart accessories, the company provides the tools needed to meet today’s and tomorrow’s cable manufacturing challenges.
wire 2026, hall 10 booth C 60
Erocarb SA
La Pomelaz 6
1429 Giez/Switzerland
Contact person is Frédéric Vaucher
Tel.: +41 24 4462303
info@erocarb.ch
