This cutting-edge system marks a significant upgrade in their quality control processes, highlighting their dedication to precision and reliability in production.

The “Gi-360T” system boasts advanced technology, including four laser beam, eight detector 360 degree laser gauging, which ensures comprehensive dimensional analysis and precise measurements from every angle. Operating on a Windows 11 platform, the system provides a seamless and user-friendly interface. An integrated velocity gauge offers accurate length measurements, while the machine’s rail-mounted setup allows for a versatile two-position bowl configuration, providing ultimate operational flexibility.

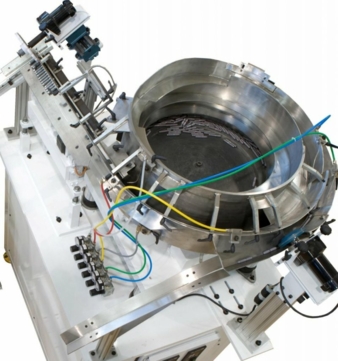

A standout feature of this system is the dual-purpose vibratory feeder system.

This feeder system efficiently handles parts with and without heads, significantly reducing changeover time and eliminating the need for multiple machines. The dual metering system ensures smooth and consistent feed of parts into the inspection system, maximizing efficiency and minimizing downtime.

Additional capabilities of the “Gi-360T” system include an On-Track Vision Station with a high-resolution camera and custom LED illumination for detailed visual inspection of the top of heads and recess features, like broken punch.

The super eddy-current station utilizes advanced digital eddy-current technology to ensure parts have gone through the heat treatment process.

The axial view wtation used specialty optics and a smart motor-controlled dial to meticulously inspect parts for small head cracks at high speeds, without the need to rotate parts.

GI offers free software updates and internet support guaranteeing expert assistance and regular updates to maintain optimal performance.

This comprehensive inspection system significantly improves the Turkish bolt company's quality control process, customer satisfaction, and overall production efficiency, demonstrating their commitment to excellence in manufacturing.
